BHS Panic Exit Device Rim Type

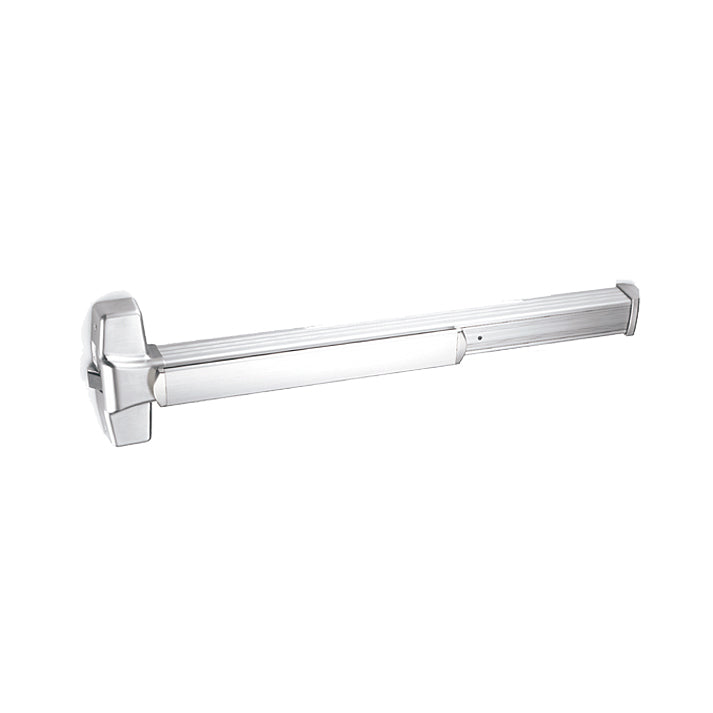

BHS Canada RIM TYPE SF-EDNS Narrow Stile Exit Device, designed to offer unparalleled durability and reliability for commercial door hardware. Crafted from extruded anodized aluminum, this device is suitable for a variety of door materials, including aluminum, hollow metal, or wood. The SF-EDNS Narrow Stile Exit Device is engineered for doors without projection on the face, ensuring seamless integration with your architectural design. Trust in its robust construction to withstand the most demanding applications.

Product Specification:

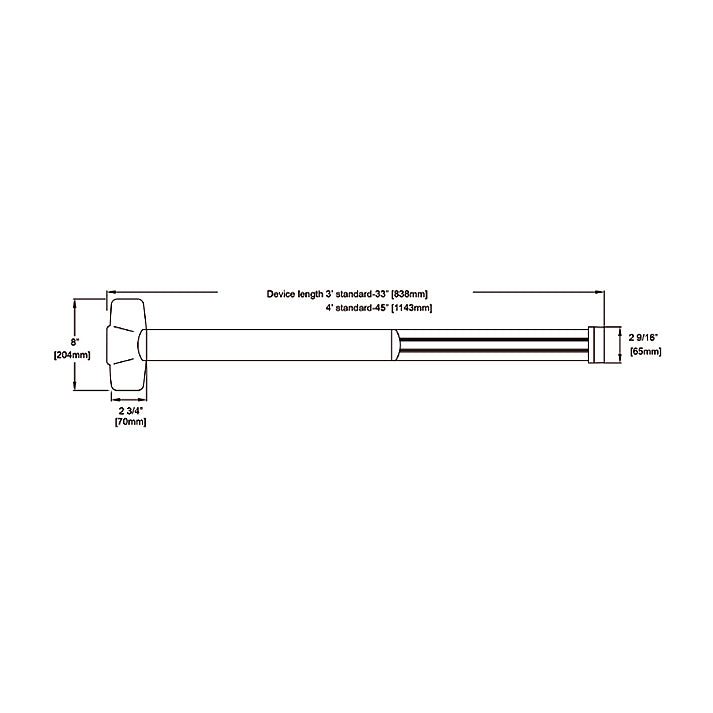

• Door Width: 3' standard for door width of 2'4" to 3' (711mmto 914mm) 4' standard for door width of 2'10" to 4' (864mm to 1219mm)
• Door Thickness: 1-3/4" (44mm) and 2-1/4" (57mm) thick of metal or wood door
• Fasteners: Furnished Standard with sheet metal & machine screws. Sexnits bolts supplied standard for fire rated exit device
• Latch Bolt: 3/4" (19mm) throw, deadlocking design
• Strike: For 3/4 (19mm stop)
• Reversible: Non-handed, reversible for all functions and trims
• Stile: 4-1/4" (108mm) minimum

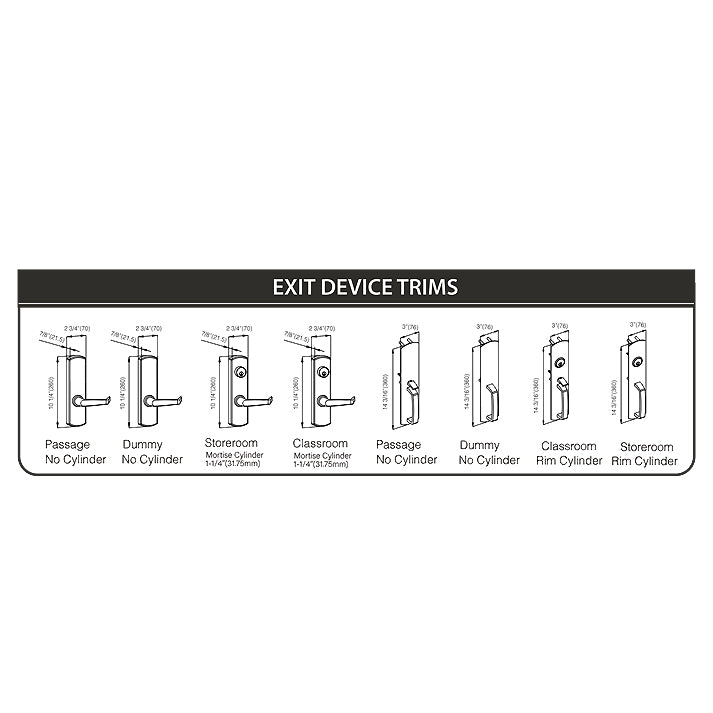

• Cylinders: For Trim, lever
• Dogging: Hex key dogging on non-fire labeled device
• Quiet Damper: A fluid damper reduces the greatest noise associated with exit device operations



  ITEM NO.

  TH9000EDTBAR
