BHS Canada Flush Bolts 1/8"-1/4" Offset, 10"-15" Rod

Product Applications:
For use with TH1103 deadlatch or any other brand of narrow stile mortise deadlatch. The lever is reversible. Handing can be reversed on the cam plug by removing the C-clip, flipping the cam over, and reinstalling the C-clip. The cam plug is secured to the lever by two hardened steel pins. The cam plug locks into the deadlatch by using the set screw in the deadlatch.

Specifications:

• Spring-loaded lever action
• Rod extension: 7/8" throw
• Backset: 3/4" - three models available, specify rod length and offset (1/8" and 1/4")
• 5/8" adjustment on rod length
• Face plate dimensions: 15/16" x 4 1/2" with 5/32" radius corner
• Square 1/2" nylon tip with beveled corners to prevent binding
• Supplied with nylon keeper and fasteners
• Finishes: AL (Aluminum), DU (Duronotic), TH1100-FB1 (available in White)

Available Models:

• SF-FB1: Rod 10” with 1/8” offset (standard)
• SF-FB2: Rod 15” with 1/8” offset
• SF-FB3: Rod 12” with 1/4” offset



  ITEM NO.	Description	FINISH

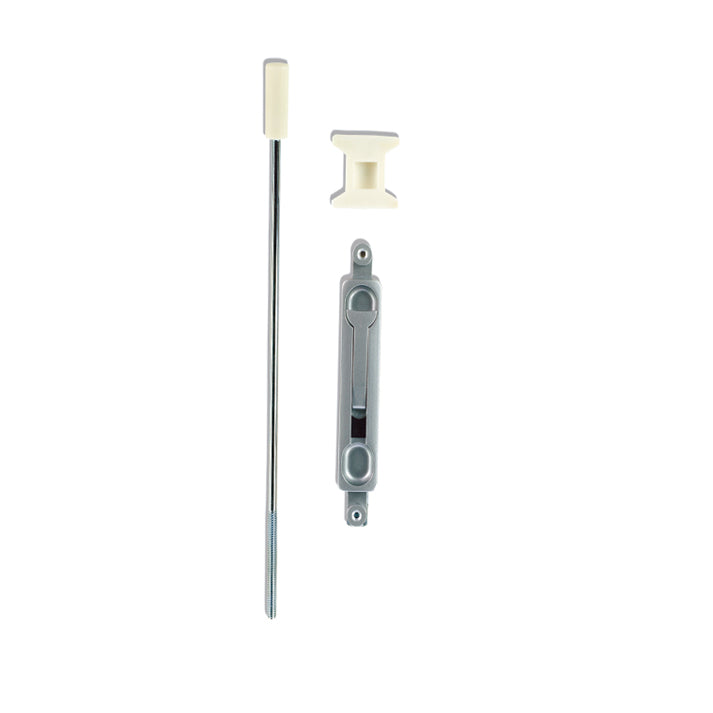

  SF-FB1-B-AL	Rod 10” with 1/8” offset (standard)	Aluminum

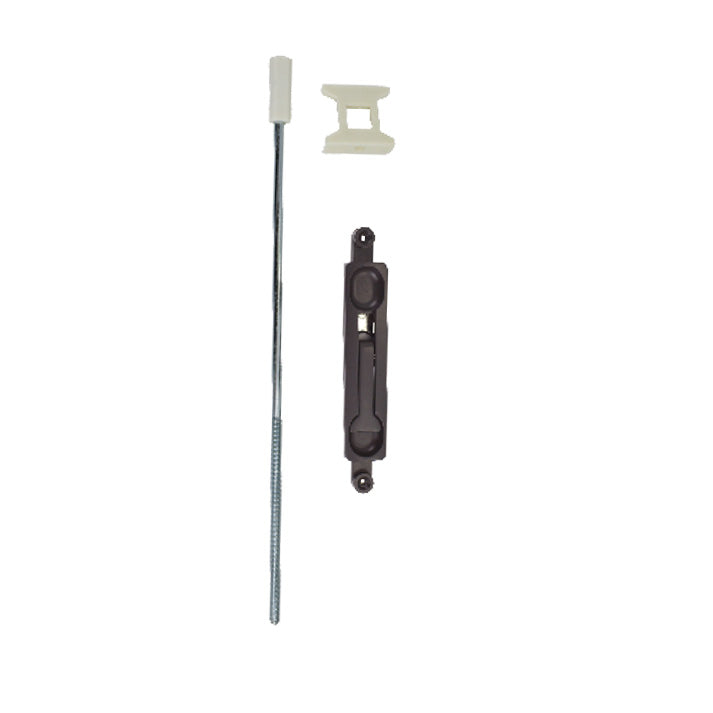

  SF-FB1-B-DU	Rod 10” with 1/8” offset (standard)	Duronotic
  SF-FB2-B-AL	Rod 15” with 1/8” offset	Aluminum
  SF-FB2-B-DU	Rod 15” with 1/8” offset	Duronotic
  SF-FB3-B-AL	Rod 12” with 1/4” offset	Aluminum
  SF-FB3-B-DU	Rod 12” with 1/4” offset	Duronotic
