BHS Stamped Trim Ring

BHS Stamped Trim Ring

Specifications

Type: Mortise or Rim
Key cylinders - 5 pin Schlage "C" keyway
TH1100 Series mortise cylinders SF-BC, SF-ZC, SF-BT, SF-ZT, SF-DUM
1" length - cam - MS A/R type, except SF-DUM
TH1100-SF-RC - Rim cylinder, flat cut to size tail piece - KD
Packed with collar ring, mounting plate, 2 screws, AL, DU

Key options specify when ordering:
For TH1100-BC, ZC
X1 - Keyed different
X1KA - Single cylinder keyed alike
X2 - Keyed alike in pairs

Finish:
Brass Cylinders - Keyed, Thumbturn: AL, DU, BL
Zinc Cylinder - Keyed, Thumbturn, Dummy: AL, DU

Cylinder Accessories:
SF-CG1 - Anti-wrench collar cylinder guard
SF-TR1 - Cylinder collar 5/16“, extruded solid
SF-TR2 - Cylinder collar 5/16“, stamped hollow

  ITEM NO. SIZE FINISH

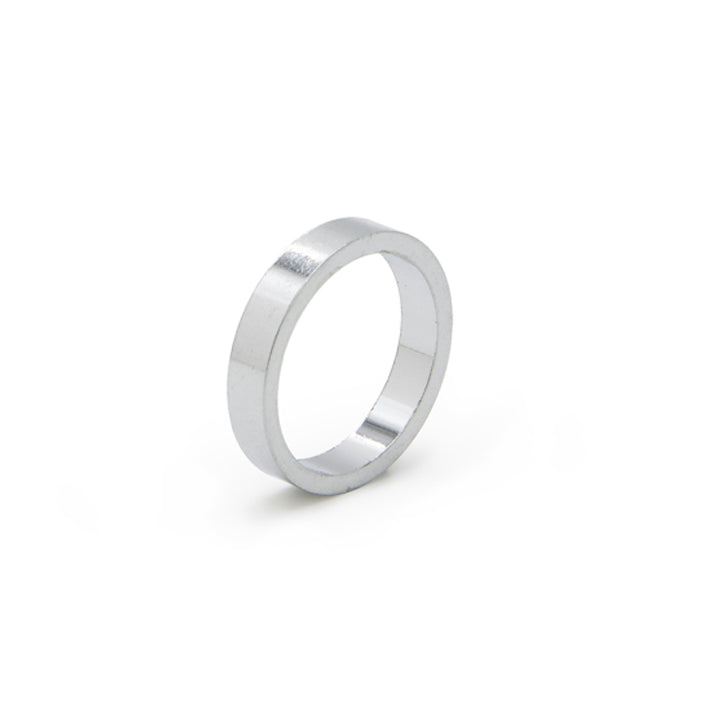

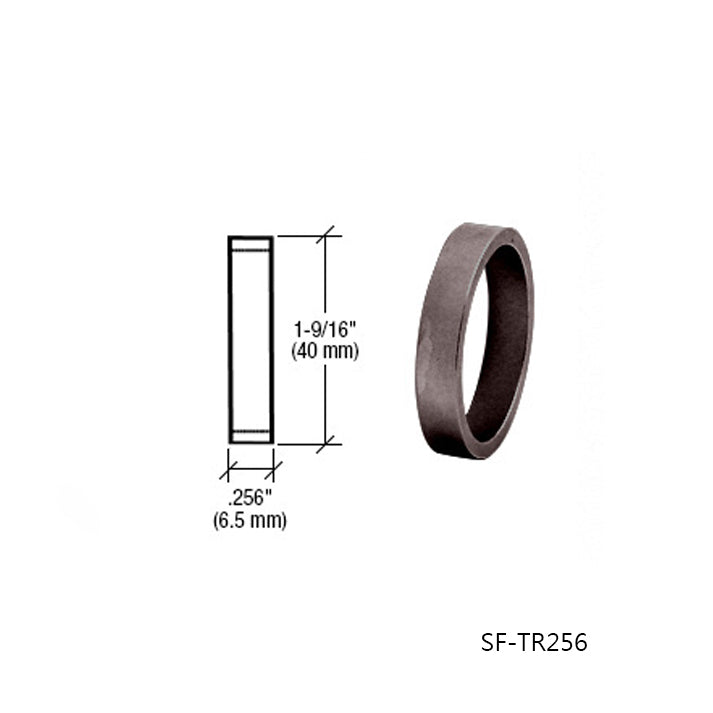

SF-TR256-AL Cylinder Diameter 1-9/16 in. (40 mm)  Aluminum
SF-TR256-BL Cylinder Diameter 1-9/16 in. (40 mm) Matte Black
SF-TR256-CP Cylinder Diameter 1-9/16 in. (40 mm) Polished Chrome

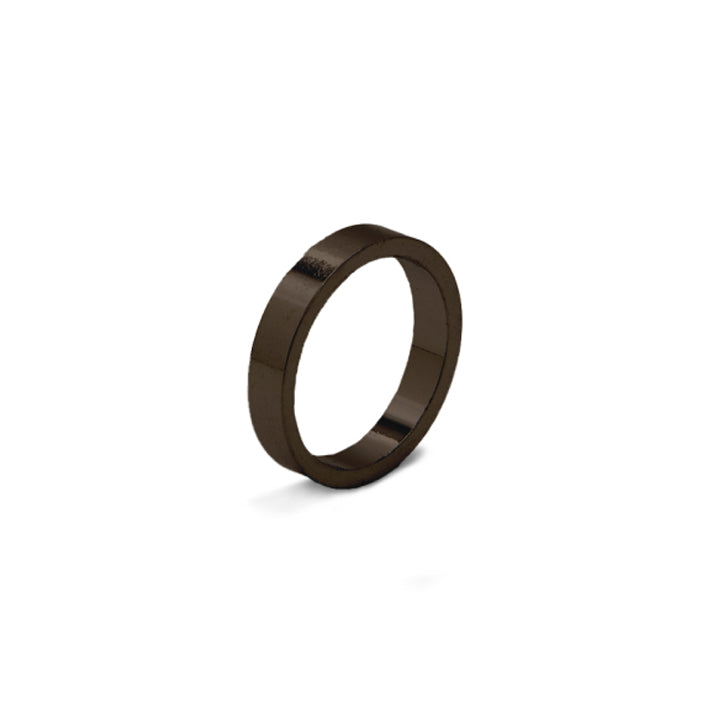

SF-TR256-DU Cylinder Diameter 1-9/16 in. (40 mm) Duronotic
SF-TR256-SC Cylinder Diameter 1-9/16 in. (40 mm) Brushed Chrome
SF-TR256-PB Cylinder Diameter 1-9/16 in. (40 mm) Polished Brass

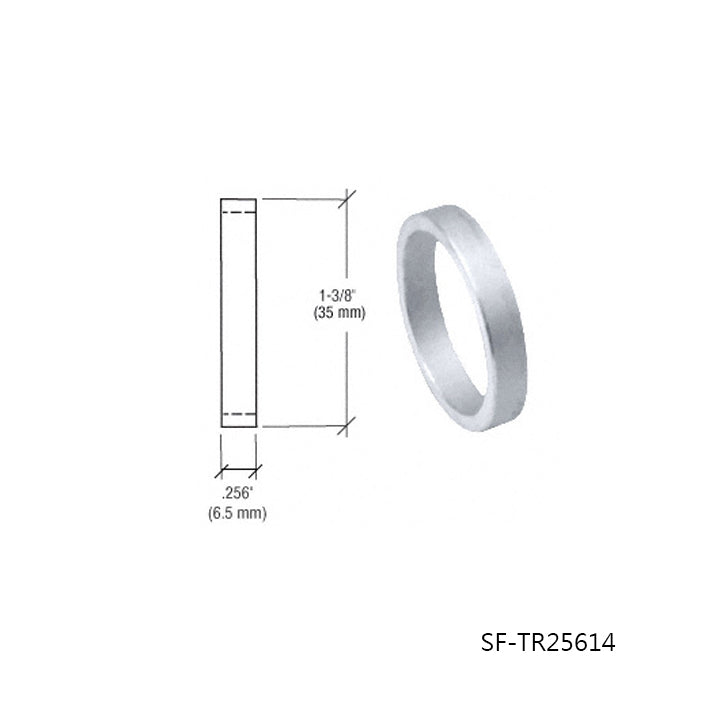

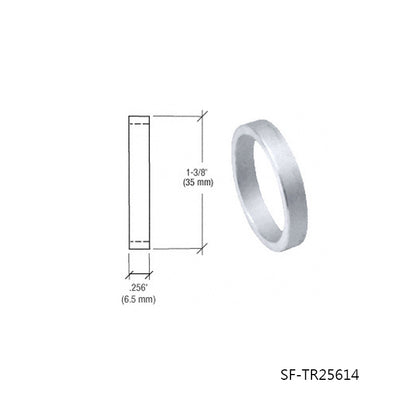

SF-TR25614-AL Ring Diameter   1-3/8 in. (35 mm) Aluminum
SF-TR25614-DU Ring Diameter   1-3/8 in. (35 mm) Duronotic
SF-TR256
SF-TR25614

SKU:SF-TR25614-AL
