BHS Canada Zinc Mortise Cylinder with Schlage® 'C' Keyway

BHS Canada Zinc Mortise Cylinder with Schlage® 'C' Keyway

Specifications:

Type: Mortise or Rim
Key cylinders - 5 pin Schlage "C" keyway

TH1100 Series mortise cylinders SF-BC, SF- ZC, SF-BT, SF-ZT, SF-DUM
1" length - cam - MS A/R type, except DUM

TH1100-SF-RC - Rim cylinder, flat cut to size tail piece - KD
Packed with collar ring, mounting plate, 2 screws, AL, DU


Key options specify when ordering:
For TH1100-BC, ZC
X1 - Keyed different
X1KA - Single cylinder keyed alike
X2 - Keyed alike in pairs


Finish:
Brass Cylinders - Keyed, Thumbturn: AL, DU, BL
Zinc Cylinder - Keyed, Thumbturn, Dummy: AL, DU


Cylinder Accessories:
SF-CG1 - Anti-wrench collar cylinder guard
SF-TR1 - Cylinder collar 5/16“, extruded solid
SF-TR2 - Cylinder collar 5/16“, stamped hollow



 ITEM NO. FINISH

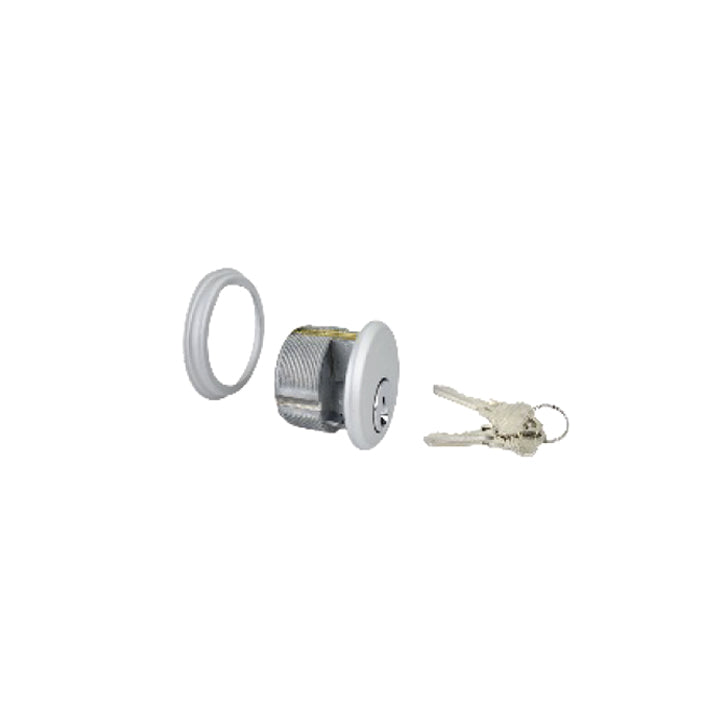

SF-ZCX1-AL Aluminum

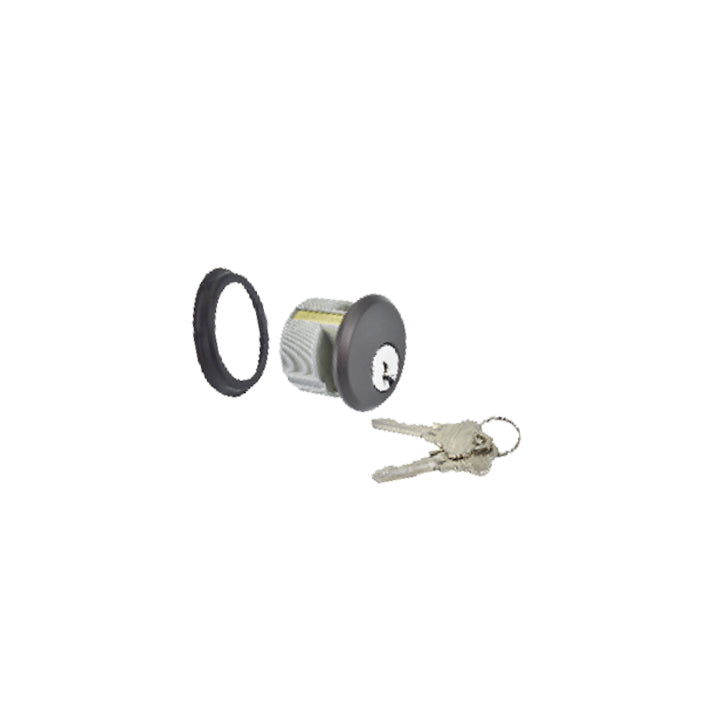

SF-ZCX1-DU Duronodic
Color: Aluminum

SKU:SF-ZCX1-AL
