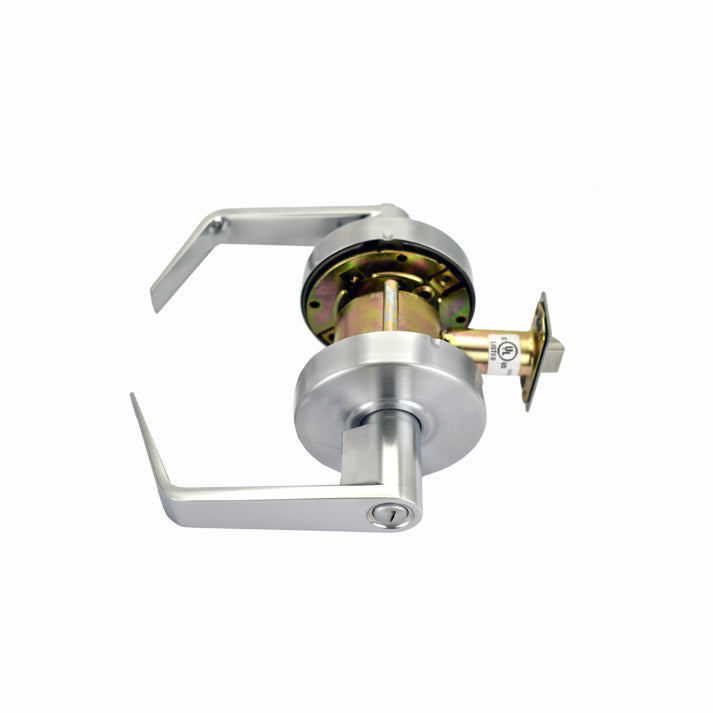

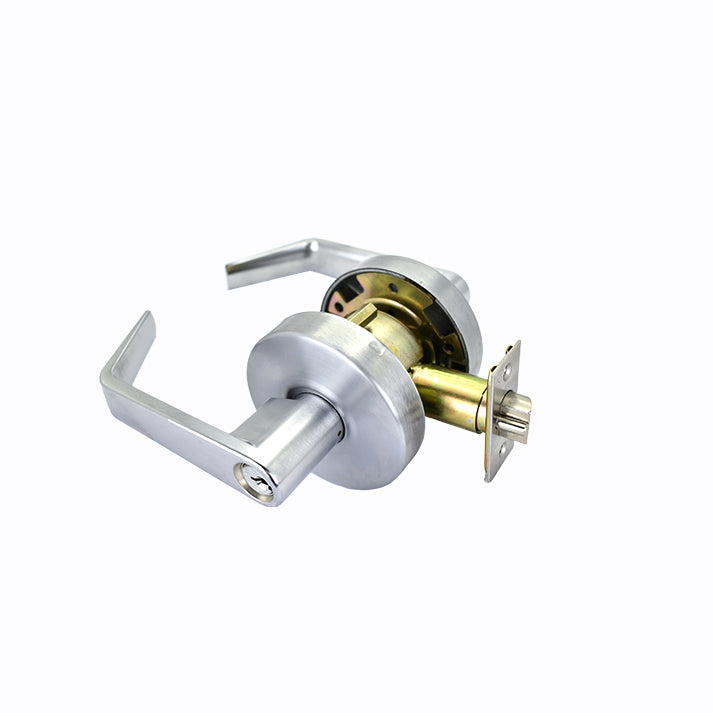

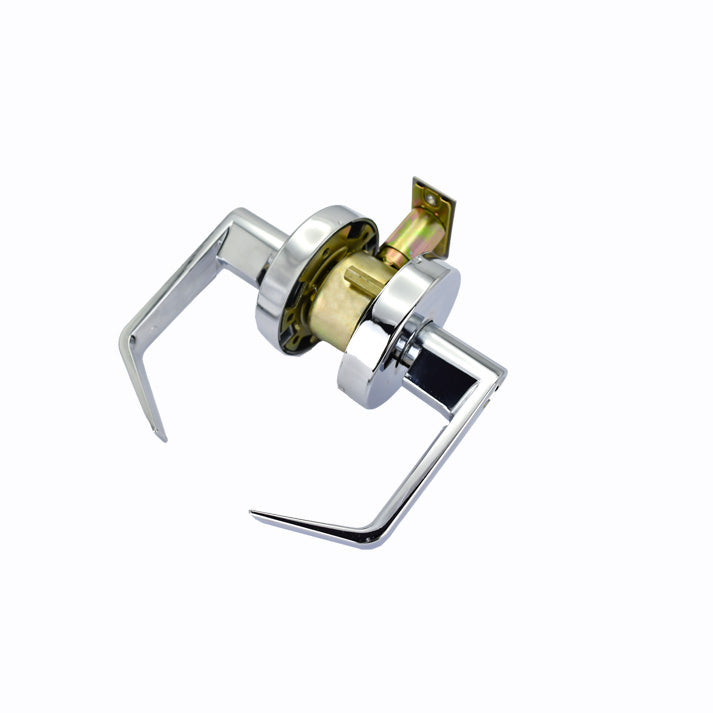

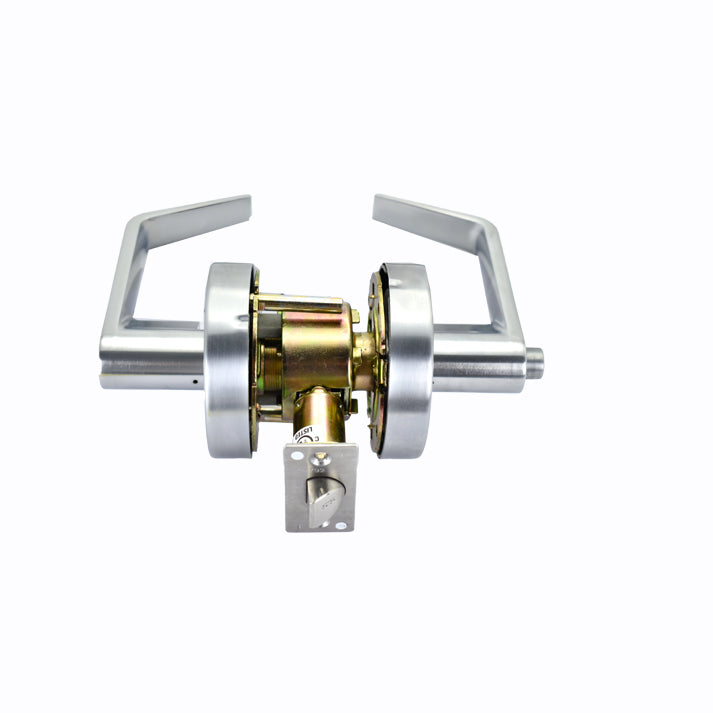

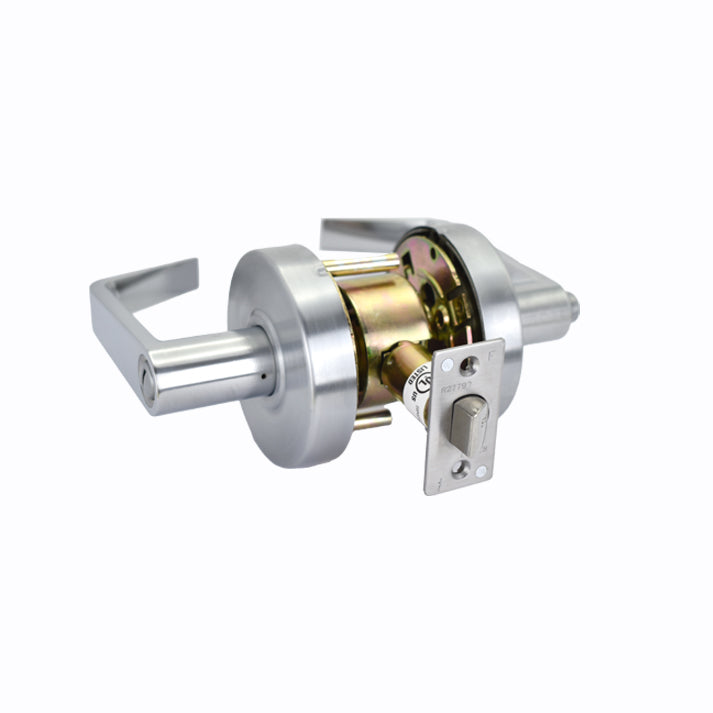

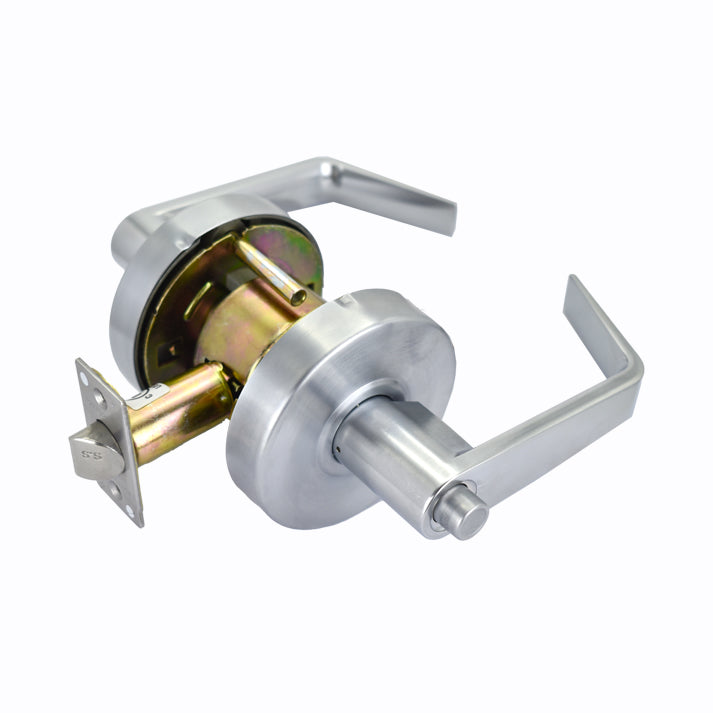

BHS Canada Grade 2 Commercial Heavy Cylindrical Leverset (Privacy)

BHS Canada Grade 2 Commercial Heavy Cylindrical Leverset (Privacy)

Product Description:

Designed to accommodate door thicknesses ranging from 1-3/8" to 2" (35-51mm), and with multiple backset options including 2-3/8", 2-3/4", 3-3/4", or 5" (60mm, 70mm, 95mm, or 127mm), our lock ensures compatibility with a variety of door configurations.

Product Features:

  • Exposed Trim: Wrought brass. Pressure cast zinc lever.
  • Door thickness: 1-3/8" to 2" (35-51mm) standard.
  • Backset: 2-3/8", 2-3/4", 3-3/4" or 5" backset. (60mm, 70mm, 95mm or 127mm
  • Strike: 9106. T strikes 1-1/8"x 2-3/4" x 5/64"(28.2mm x 69.5mm x 2.0mm) standard.
  • ASA strike 1-1/4" x 4-7/8" x 3/32"(31.4mm x 123.5mm x2.4mm) optional.
  • Latch: 2-3/4"(70mm) standard. Faceplate: 1-1/8" x 2-1/4"(28.4mm x 57mm) square corner 1" x 2-1/4" (25.4mm x 57mm) faceplate is also available.
  • Latch bolt: Stainless steel powder metallurgy latch bolt with 1/2" (12.7mm) throw.
  • Cylinder: 6 pin solid brass cylinder. Schlage "C" keyway standard. Small Format
  • Non- Handed levers
ITEM NO. FINISH
GAL-1140L-G2-626 SATIN CHROME (US26D)
GAL-1140L-G2-US10B US10B
GAL-1140L-G2-US15 BRUSHED NICKEL (US15)
GAL-1140L-G2-US26 POLISHED CHROME
GAL-1140L-G2-US3 POLISHED BRASS(US3)
GAL-1140L-G2-MTB MATTE BLACK
Color: SATIN CHKROME (US26D)

SKU:GAL-1140L-G2-626
