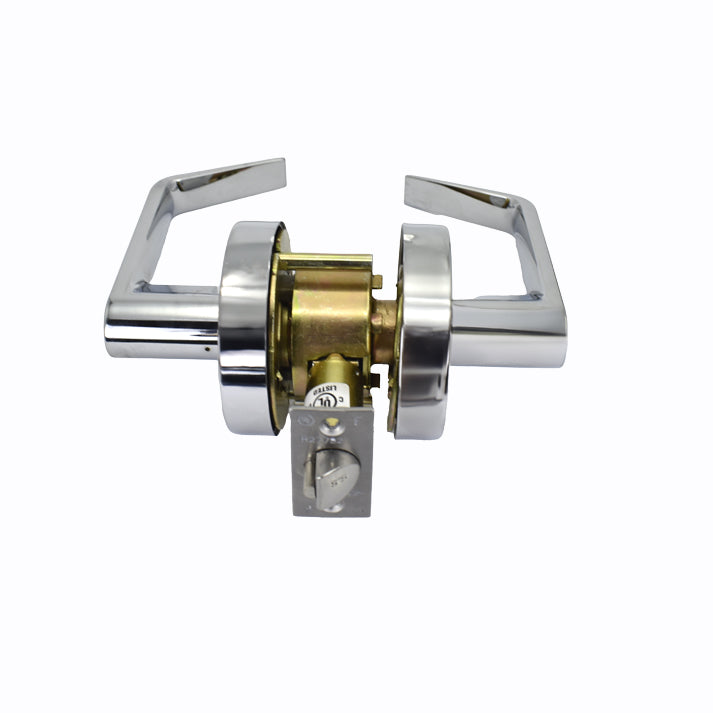

BHS Canada Grade 2 Commercial Heavy Cylindrical Leverset- IC (Storeroom)

BHS Canada Grade 2 Commercial Heavy Cylindrical Leverset- IC (Storeroom)

Product Description:

Our Grade 2 Commercial Heavy Cylindrical Leverset integrates advanced features seamlessly to redefine your locking experience. Clutch function ensures smooth and reliable door operation, providing peace of mind in every entry and exit with a Removable Thru-Bolt design. Customize your setup effortlessly with an Adjustable Mounting Plate, adapting to your specific needs with precision and ease. The Removable Push-Turn Button offers intuitive access control, allowing you to personalize your locking system. For enhanced security, an IC Core Cylinder option is available, providing an additional layer of protection tailored to your requirements.

Product Features:

  • Exposed Trim: Wrought brass, Pressure cast zinc lever.
  • Door thickness: 1-3/8" to 2" (35-51mm) standard.
  • Backset: 2-3/8", 2-3/4", 3-3/4" or 5" backset. (60mm, 70mm, 95mm or 127mm
  • Strike: 9106 T strikes 1-1/8"x 2-3/4" x 5/64"(28.2mm x 69.5mm x 2.0mm) standard. ASA strike 1-1/4" x 4-7/8" x 3/32"(31.4mm x 123.5mm x2.4mm) optional.
  • Latch: 2-3/4"(70mm) standard. Faceplate: 1-1/8" x 2-1/4"(28.4mm x 57mm) square corner. 1" x 2-1/4" (25.4mm x 57mm) faceplate is also available.
  • Latch bolt: Stainless steel powder metallurgy latch bolt with 1/2" (12.7mm) throw.
  • Cylinder: Small Format Interchangeable Core cyoinder.(7 pin cylinder).
  • Non- Handed levers
 ITEM NO. FINISH
GAL-1180L-G2-IC-626 SATIN CHROME (US26D)
GAL-1180L-G2-IC-US10B US10B
GAL-1180L-G2-IC-US15 BRUSHED NICKEL(US15)
GAL-1180L-G2-IC-US26 POLISHED CHROME
GAL-1180L-G2-IC-US3 POLISHED BRASS(US3)
GAL-1180L-G2-IC-MTB MATTE BLACK
Color: SATIN CHKROME (US26D)

SKU:GAL-1180L-G2-IC-US26D
