Product Overview:
This BHS Extruded Trim Ring is versatile and compatible with both Mortise and Rim configurations, ensuring seamless integration into your existing setup. Featuring a 5 pin Schlage "C" keyway, it provides reliable security for your property. Designed to work with TH1100 Series mortise cylinders, it comes with a 1" cam length, offering compatibility with MS A/R type, except for DUM configurations.
Product Specification:
Type: Mortise or Rim
Key cylinders - 5 pin Schlage "C" keyway
TH1100 Series mortise cylinders SF-BC, SF-ZC, SF-BT, SF-ZT, SF-DUM
1" length - cam - MS A/R type, except DUM
TH1100-RC - Rim cylinder, flat cut to size tail piece - KD
Packed with collar ring, mounting plate, 2 screws, AL, DU
Key options specify when ordering:
For TH1100-SF-BC, SF-ZC
X1 - Keyed different
X1KA - Single cylinder keyed alike
X2 - Keyed alike in pairs
Finish:
Brass Cylinders - Keyed, Thumbturn: AL, DU, BL
Zinc Cylinder - Keyed, Thumbturn, Dummy: AL, DU
Cylinder Accessories:
SF-CG1 - Anti-wrench collar cylinder guard
SF-TR1 - Cylinder collar 5/16“, extruded solid
SF-TR2 - Cylinder collar 5/16“, stamped hollow
| ITEM NO.
|
SIZE |
FINISH |

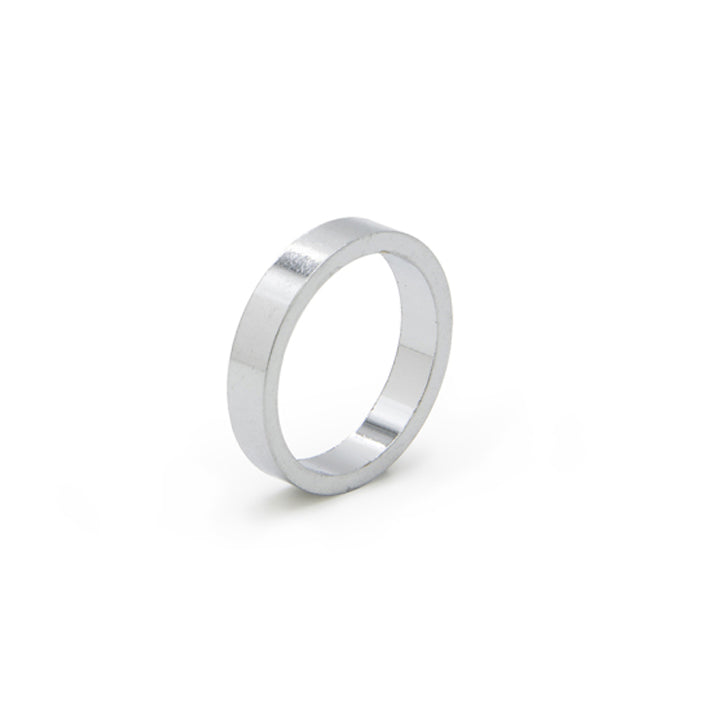

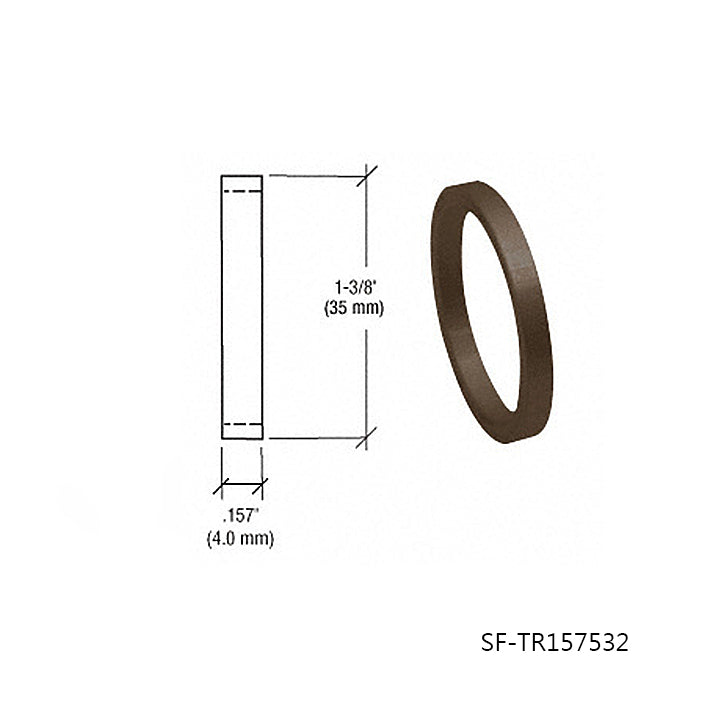

| SF-TR157532-AL |
Ring Thickness 0.157 in. (5 mm) |
Aluminum |

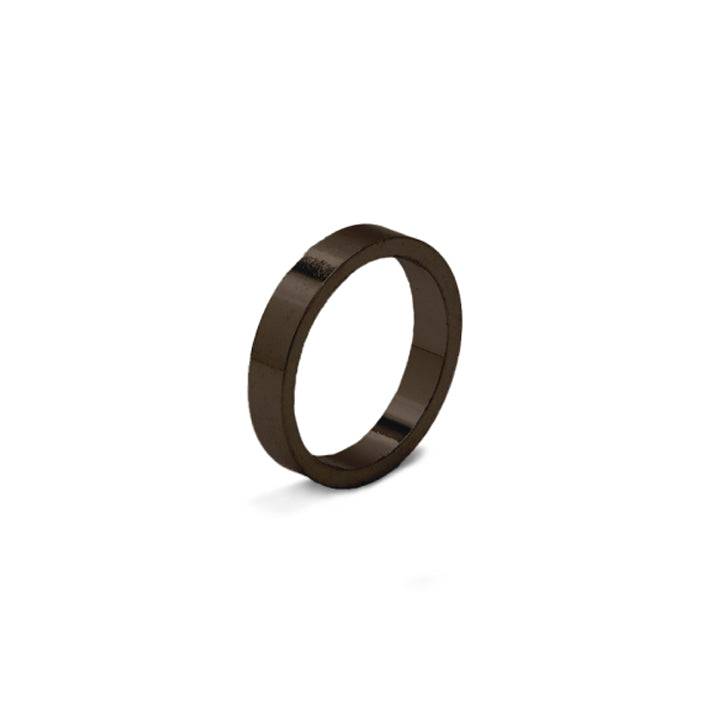

| SF-TR157532-DU |
Ring Thickness 0.157 in. (5 mm) |
Duronotic |

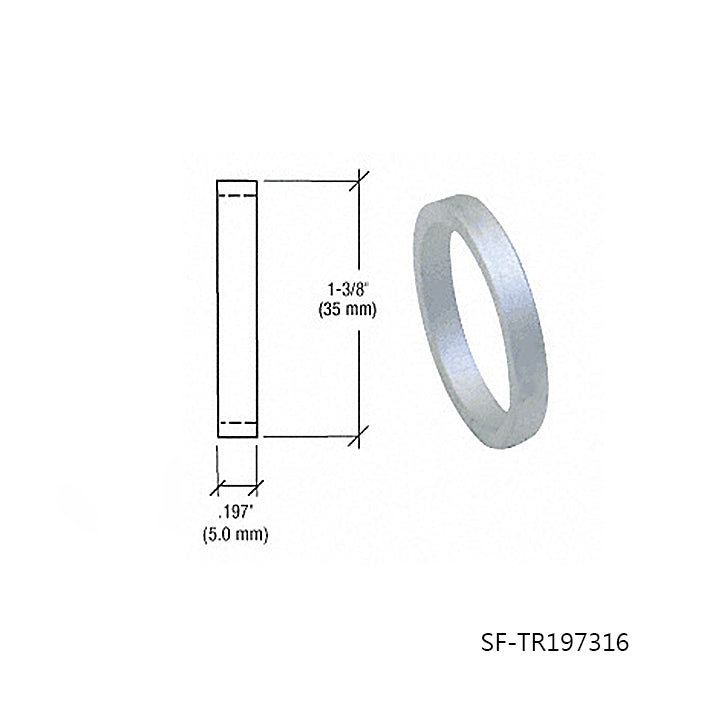

| SF-TR197316-AL |
Ring Thickness 0.197 in. (5 mm) |
Aluminum |
| SF-TR197316-DU |
Ring Thickness 0.197 in. (5 mm) |
Duronotic |
