BHS Canada Aluminum Geared Continuous Hinge – Full Mortise

BHS Canada Aluminum Geared Continuous Hinge – Full Mortise

GHMT24 Full Mortise Specifications

  • Available in full mortise and surface mount
  • 6063 T6 Aluminum alloy, with interlocking extrusions
  • Non-handed design
  • 83" or 95" length
  • Standard duty with 16 thrust type self-lubricating concealed bearings per hinge
  • Heavy duty with 32 thrust type self-lubricating concealed bearings per hinge
  • High degree of security
  • Anodized aluminum after machining
  • Through bolt and machine screws fixing
  • Templated hole patterns
  • 10-year warranty
  • Mortise Type

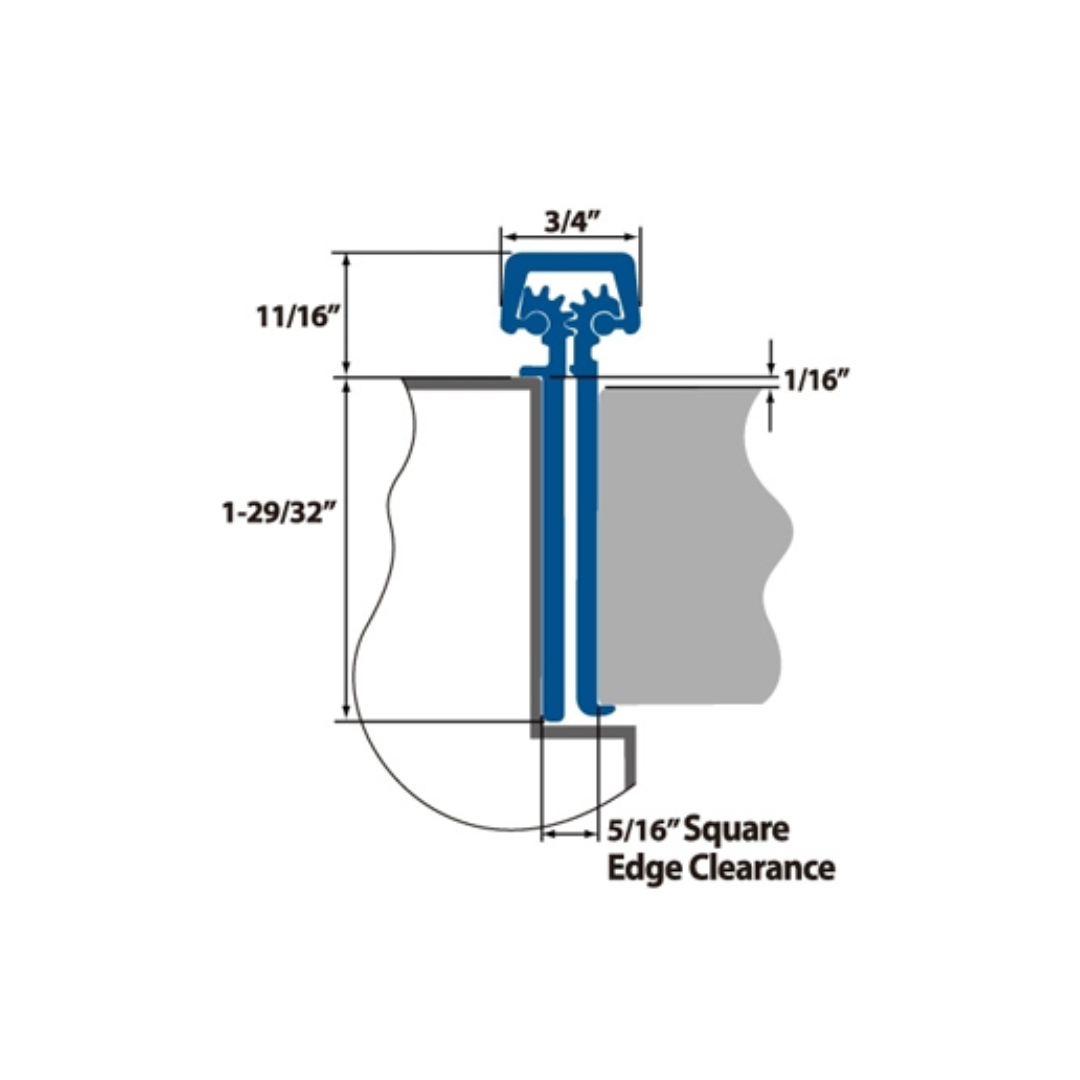

  • 1/16" door offset
  • Door edge guard
  • 5/16" clearance between door and frame

Available Finish:
GHMT24-83HD-AL
GHMT24-83HD-DU

-STANDARD-

ITEM NO. FINISH
GHMT24-83SD-AL Aluminum
GHMT24-83SD-DU Duronodic
GHMT24-95SD-AL Aluminum
GHMT24-95SD-DU Duronodic
GHMT24-120SD-AL Aluminum
GHMT24-120SD-DU Duronodic



-HEAVY DUTY-

ITEM NO. FINISH
GHMT24-83HD-AL Aluminum
GHMT24-83HD-DU Duronodic
GHMT24-95HD-AL Aluminum
GHMT24-95HD-DU Duronodic
GHMT24-120HD-AL Aluminum
GHMT24-120HD-DU Duronodic



Color: Aluminum
STANDARD GHMT24
HEAVY DUTY GHMT24

SKU:GHMT24-83SD-AL
