BHS Canada Aluminum Geared Continuous Hinge – Full Mortise

BHS Canada Aluminum Geared Continuous Hinge – Full Mortise

FULL MORTISE Specifications

  • 6063 T6 Aluminum alloy, with interlocking extrusions
  • Non-handed design
  • 83" or 95" length
  • Standard duty with 16 thrust type self-lubricating concealed bearings per hinge
  • Heavy duty with 32 thrust type self-lubricating concealed bearings per hinge
  • High degree of security
  • Anodized aluminum after machining
  • Through bolt and machine screws fixing
  • Templated hole patterns
  • 10-year warranty
  • Mortise Type
  • Flush mount
  • Each hinge leaf gas an alignment stops

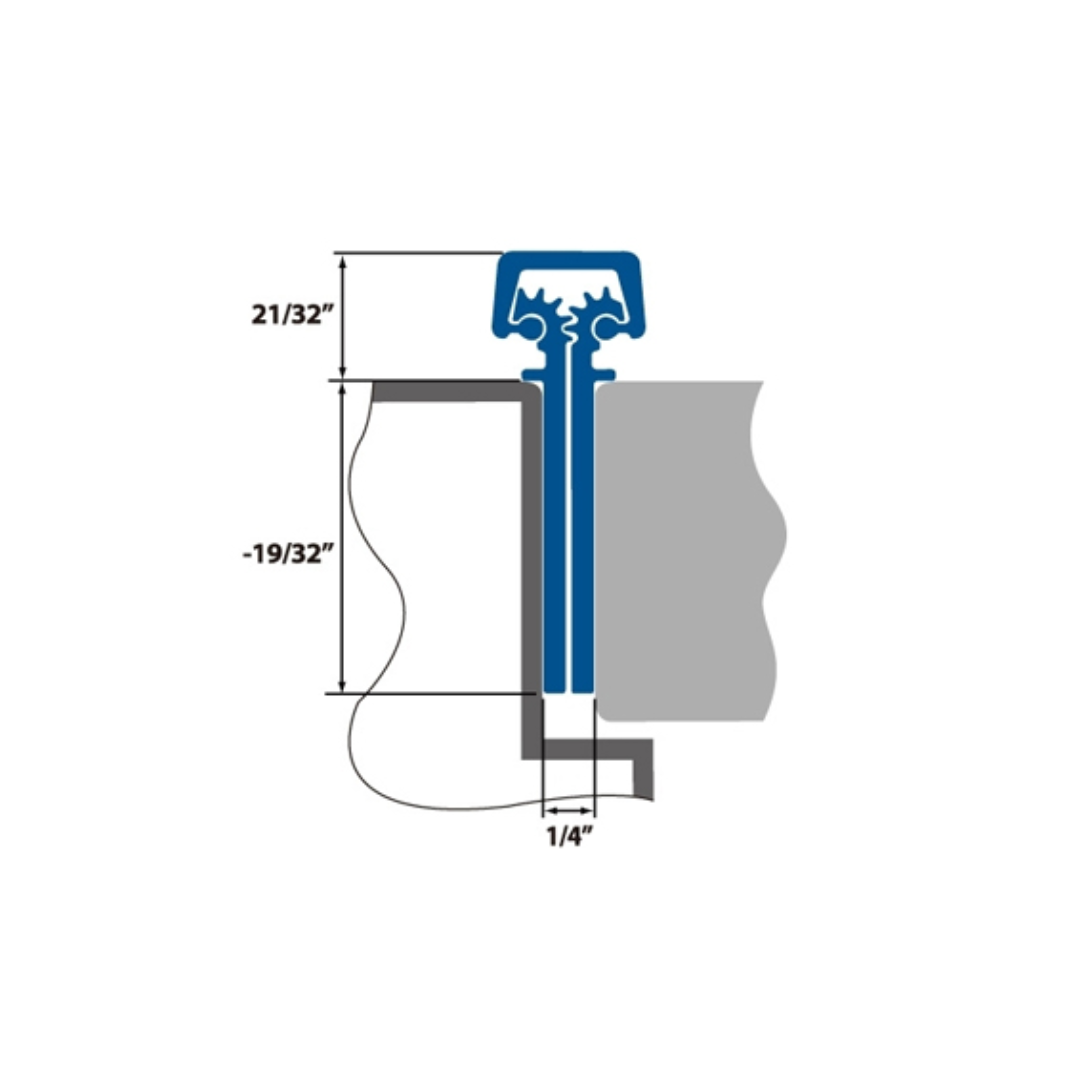

  • 1/4" clearance between door and frame

Available Finish:
GHMT10-83HD-AL
GHMT10-83HD-DU

-STANDARD-

ITEM NO. FINISH
GHMT10-83SD-AL Aluminum
GHMT10-83SD-DU Duronodic
GHMT10-95SD-AL Aluminum
GHMT10-95SD-DU Duronodic


-HEAVY DUTY-

ITEM NO. FINISH
GHMT10-83HD-AL Aluminum
GHMT10-83HD-DU Duronodic
GHMT10-95HD-AL Aluminum
GHMT10-95HD-DU Duronodic
GHMT10-120HD-AL Aluminum
GHMT10-120HD-DU Duronodic




Color: Aluminum
STANDARD GHMT10
HEAVY DUTY GHMT10

SKU:GHMT10-83HD-AL
